Dev energy CEO Mr Varun jindal interview

By UncategorizedNo Comments

Dev Energy stands at the forefront of innovation, dedicated to enhancing efficiency and productivity in India’s steel, ceramics, and non-ferrous industries. With a robust portfolio of over 200 systems operating successfully, the company has established itself over the past 24 years in the field of coal gasification, pioneering many of the nation’s first projects focused on coal gas generation.

In an exclusive interview, Varun Jindal, CEO of Dev Energy, shares his journey in revolutionising coal gasification technology in India. Conducted by Santosh Mahanti, Editor of Iron & Steel Review magazine, the discussion explores the objectives behind establishing Dev Energy, a company committed to optimising energy solutions across various industries. He talks about the innovative two-stage gasification technology developed by the company, highlighting its significant impact on cost efficiency in the steel and ceramics sectors. The interview also emphasises Dev Energy’s mission to transition industries towards cleaner and more economical fuel alternatives, providing insight into the future of coal gasification in India and its potential to reshape the industrial landscape

What inspired you to start Dev Energy?

Every great idea starts from a seed, and in my case, that was the problem that no one seemed to be solving at that time – the process of using cheap coal to replace expensive fuels. India is abundant in coal; however, no major industry was using it in 2003 as a fuel. That’s why I searched for the best coal gasification technologies in the world and found the same being used in China extensively. It felt like a smarter, cleaner, and more economical way to use our domestic coal resources. It was about making the best use of what we already have – coal – while providing no-compromise technological solutions to the industry.

Dev Energy was built around that idea. I wished for us to become a complete solution provider, helping industries transition to efficacy, efficiency and cost competitiveness and replacing the expensive imported fuels and draining us of precious foreign exchange.

What is coal gasification, and what’s the value proposition for the user?

Coal gasification is a technology that converts coal into a clean, versatile fuel called coal gas, which can be used as fuel to heat furnaces of steel mills, ceramic tile plants and any other industry that needs heat. The complete coal gasification and gas purification process through our plant is able to harness the energy in coal in the form of gas and segregate the harmful tars, phenols and ash. The driver for me has been to create a strategic shift for my customers by being cost-competitive. I genuinely believe that coal gasification is a bridge between today’s realities and tomorrow’s future. It’s about securing energy independence and creating jobs, all while being commercially viable.

How is Dev Energy’s gasification technology offering different?

Dev Energy’s gasification technology deals with the gasification process in two stages, with volatiles in coal being converted to gas in the upstage reactor and the carbon in coal converted to gas in the downstage reactor in the presence of steam and air. The reaction is at very high temperatures, making it the most efficient conversion in the industry. The two-stage technology provides an immense advantage in gas cleaning and purification. The proprietary 8-stage cooling and cleaning process cools and cleans the gas of dust, tar, phenols, moisture, sulphur and other harmful particles. The process is accompanied by a proprietary reuse process of phenolic water, making the complete system Zero Liquid Discharge and compliant with the NGT norms for coal gasification in India.

What industries are you targeting for coal gasification?

Our focus has always been on industries where heat is a big part of the operating cost, and directly switching to coal firing isn’t practically possible. Therefore, the primary target has been the steel industry, with reheating furnaces and pellet plants being major consumers of heat. These furnaces were operating on furnace oil and stood to save 50% of their fuel cost by shifting to coal gasification. Next, the ceramic industry was in focus with wall tiles, floor tiles and tableware being made by natural gas or LPG, providing an opportunity to shift to clean and cheaper coal gas. In the last 23 years, we have successfully commissioned more than 200 plants, and 85% of them are in the above-mentioned industries. Many other applications remain untapped, such as chemicals like TiO2, non-ferrous melting shops, and alumina calciners, which are still using very expensive fuels.

Which projects have been your hallmark of success?

I feel that luck is an opportunity that meets preparation; therefore, I have been very lucky. The strength of a technology enterprise is measured by how many times it has been a first mover. We have the distinction of being the first in India to have successfully commissioned coal gasification for Ceramic Tableware at the biggest brand Clay Craft, Ceramic Tiles at the famous brand Kajaria Tiles, 240 tph Steel Reheating Furnace at Jindal Steel & Power, 14 USER Coal Gasification Plant at Tata Steel (Tayo Rolls), Straight Grate Pellet Plant at Minera Steel & Power, Grate Kiln Pellet Plant at Ankit Metal & Power, Stainless Steel Slab Reheating Furnace at Rimjhim Stainless and many more. We have been able to successfully envision and execute these projects with our deep understanding of process, design, engineering and implementation.

How do you envision the future of coal gasification in India?

I feel the coal gasification in India is in both arenas – Fuel and Syngas.

In fuel usage, the Indian industry has understood the reality of coal being cheaper than other alternative fuels, and if they choose the right technology, the adaption of coal with no resultant harm to the environment will be possible. The latest technologies, like Air-fed Circulation Fluidised Bed (CFB), will enter India as they can use coal fines and have zero tar and phenol footprint.

In Syngas, coal is the base raw material, which can be converted to expensive raw materials like hydrogen and ammonia to produce valuable chemicals like methanol, DME, synthetic natural gas and fertilisers. The Syngas can be used as a direct reductant in the DRI-making process, removing the need for imported coking coal.

We at Dev Energy are part of this journey, offering CFB-based technological solutions that make sense for both arenas, helping India’s transition into a future without dependence on imports.

What is Circulating Fluidised Bed (CFB) technology?

Circulating Fluidised Bed (CFB) coal gasification technology uses the process of conversion of coal fines into carbonised gas by creating a cloud of coal fines and oxygen under high pressure and temperature. The operations are just below the Ash Fusion temperatures of coal, and thus, ash is not melted. The process is made efficient through multiple loops of circulation of coal till the carbon is fully converted. The process is best suited for gasification of light bituminous and sub-bituminous coal as they are softer and with high reactivity. The plants are simpler than other competing technologies.

How does it address the challenge of using high-ash Indian coal?

The Indian coal is mostly available with high ash content, and thus, the future technology must be able to perform on it. Our CFB technology has the inherent advantage of operating range of pressure and temperature which allow the carbon conversion without the problems of agglomeration. The optimum pressure and temperature suitable for the Indian coal allow the CFB gasifiers to use coals with up to 30% ash content on an ADB basis. The same has been tested and proven in many lab-scale and commercial plants.

What is the challenge for coal gasification to be successful in India?

If we as a nation want coal gasification to take off in India, I think a few realistic and practical policy changes are required. You must understand that projects like these need heavy upfront investment, and long-term policy clarity gives businesses and investors the confidence to plan big. The first key step is to ensure that the coal is available at the right price and with long-term supply assurance for consistent quality and quantity. Secondly, we need to make all project approvals, including environmental clearances, smoother without cutting corners on safety or environmental checks but by simplifying the process and cutting down unnecessary delays. The steel industry will benefit hugely from these two steps as the Syngas to DRI process is a proven technology waiting to be implemented in the right ecosystem. The third step for other products would be to build a proper market around products made from Syngas like methanol, DME, SNG, ammonia, and hydrogen. If we have a clear pricing framework or guaranteed offtake model in place, industries would be far more willing to invest in gasification projects.

How do you see the National Coal Gasification Mission influencing your roadmap?

The National Coal Gasification Mission is a very timely intervention by the Government of India. It’s encouraging to see the government actively supporting cleaner, more efficient ways of using our domestic coal resources. For us at Dev Energy, it feels like the larger ecosystem is finally catching up with a vision we’ve been working towards for years. This mission isn’t just about policy, but it’s about creating real opportunities on the ground. The senior officials are open to any discussion or feedback in framing and execution of the policy. The structure of Viability Gap Funding is intelligently designed to enable public sector and private sector participation. I believe that 15% VGF on the total Capex should excite many players to jump on the coal gasification bandwagon. It gives us, as Dev Energy, the confidence that we’re building the future in the right direction and the support to think even bigger.

How do you think the adoption of coal gasification happened in the steel industry in India?

I believe that the lowest hanging fruit in the Syngas arena is the use of Syngas as a reductant in the DRI-making process. The large public sector or private steel players should get together and set up the smallest viable commercial-scale project of 0.8 MTPA with assured coal as part of the National Coal Gasification Mission. The capital cost of the project can be optimised by first spending on study and detailed engineering of the process and equipment with the aim to convert 75-80% into make in India. The indigenisation of the technology should be a prime objective with a target to multiple deployments on success.

What are the biggest leadership lessons you’ve learned while building Dev Energy?

Building Dev Energy has been a constant learning experience of my life. I realised early on that leadership is not about having all the answers, but it is about listening, asking the right questions, and trusting your team. The toughest part of being a leader for me has been to let go of control. In the beginning, I was and wanted to be part of every decision, every detail. But as we grew, I realised that the best thing I, as a leader, can do is to build a strong team, give them a clear direction, and then step back and let them run with it. In the last 23 years, I also learnt that it is okay to fail. Not everything I tried worked; some ideas flopped, some deals didn’t happen. But those moments taught me much more than the easy wins ever did. Now, if there is one thing I truly believe — it is that people follow values, not positions. Being honest, staying grounded, and genuinely caring about your people and your purpose makes all the difference. That’s what I try to remind myself of every.

What are the key timeless values you think are the cornerstone of Dev Energy?

I have driven Dev Energy by a set of core values that guide all our decisions and actions. These serve as the mile markers on the highway of success for us.

Honesty is being transparent and open in all work practices. All stakeholders, suppliers, employees or our customers are bound to each other by trust. This results in empowerment at all ends.

Excellence is a way of doing things. We do our best to upgrade our skills and knowledge.

Innovation is constantly pushing for better ways to serve. We are always thinking out of the box of unique solutions to solve challenges. This proactive approach puts us ahead of all others.

Reliability is to embrace ownership of tasks assigned to us. We strive in our goal to create a product that meets customers’ expectations 100%.

What advice would you give to young entrepreneurs interested in clean tech innovation?

My advice to anyone entering or navigating this arena would be to not give up on how tough or slow it feels at times working in this industry. There are no overnight success stories. It takes time, it takes patience, and sometimes it feels like there is no light at the end of the tunnel. But if you stick with it, the impact you’ll create will be something you can truly be proud of. Also, be very clear about why you’re doing it. Clean tech sounds exciting, but it comes with its own set of challenges. You need to be passionate about solving real problems, not just chasing trends. And don’t wait for the perfect idea or perfect time. Start small, ask lots of questions, and spend time in the field. Most good ideas come from paying attention to problems no one else is looking at. Lastly, find people who share your values and believe in the future you’re working towards. It makes the journey a whole lot easier and a lot more meaningful.

How has Dev Energy extended its footprint into related areas?

In the last 23 years, I have been interacting with many technology companies all over the world, and our clients keep asking for our help in solving various challenges. We have, in the process, developed and deployed technologies in the following fields.

Scrap Processing

Deteriorating steel scrap quality necessitated the preparation of scrap for melting through scrap processing machines for better efficiencies in melting furnaces. Processed steel scrap is denser and cleaner for faster charging in the furnaces. Dev Energy has developed expertise to provide innovative turnkey solutions for efficient scrap segregation, processing and feeding. The scrap is processed using three broad methods, namely Shearing, Baling and Shredding. The machine selection depends on the type of raw steel scrap, its density, size, cleanliness level, size of the furnace, power density of the furnace, etc. There are various types and sizes of machines available to process scrap from 01 to 100 t/hr.

Fumes Extraction System

The present devices can only absorb up to ~60% of emissions and cannot fulfil government standards. Because they are intended for exceptionally high working pressure, their operating costs are quite expensive. Dev Energy developed and deployed a Dog House-based fumes extraction system for induction furnaces, collecting more than 95% of the fumes, and total power usage is ~10 kwh/t. Scrap Pusher compliments the Dog House system to help SMS furnaces achieve the required melting rate. Scrap Charging Trolley, which is remotely controlled, helps feed the scrap to furnaces without the need for the Dog House to be moved.

Reheating Furnaces

The heating cost of steel is a major component in the making of rolled steel. Efficient reheating furnaces are the need for the hour. Dev Energy has partnered to provide efficient walking beam furnaces with regenerative burner technology. The furnaces can be designed on any fuel such as coal gas, blast furnace gas, natural gas or mixed gas.

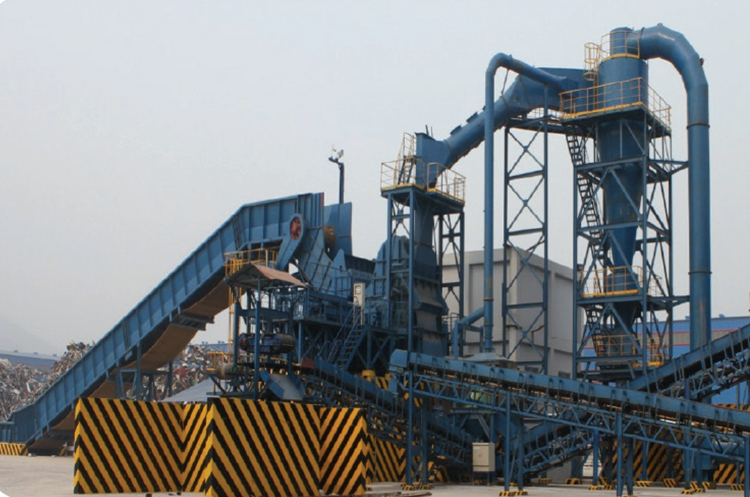

Smarter Scrap Processing: Enhancing Efficiency in Melting Furnace

By UncategorizedNo Comments

Why is Scrap Processing Important?

Deteriorating scrap quality has necessitated the preparation of scrap through scrap processing machines for better efficiencies in melting furnaces. Processed scrap is denser and cleaner for faster charging in the furnace.

Processed scrap also consumes less power per ton of steel produced, resulting in high productivity for the furnace. Dev Energy scrap solutions can be tutored to plant needs and help processors manage any type of input scrap; while increasing scrap value and employee safety through efficient of scrap handling. We proudly provide robust industrial shredders and shears in the market today. Our systems not only make scrap easier to manage, then low-cost operations reduce waste thus lowering the total cost and providing immense value to the company.

Application Impacts

Steel making is a very competitive business. The secondary steel manufacturers have to be efficient and their cost has to match the primary producers who make steel from Iron ore. The secondary steel making process has to use the Electric Arc or Induction Furnaces to make molten steel. In India about 45% of the steel is produced using Induction Furnace with the use of two basic raw materials Sponge Iron and Scrap Steel.

Dev Energy - Benefits

  • Power Consumption LOWER BY ~ 15 %
  • Heat Time REDUCTION BY ~ 20 %
  • Increase in Production Per Heat Unit
  • Increased Life of Furnace Lining
  • Reduction in Slag Formation
  • Reduction in Scrap Purchase Cost
  • Less Fumes & Cleaner Environment

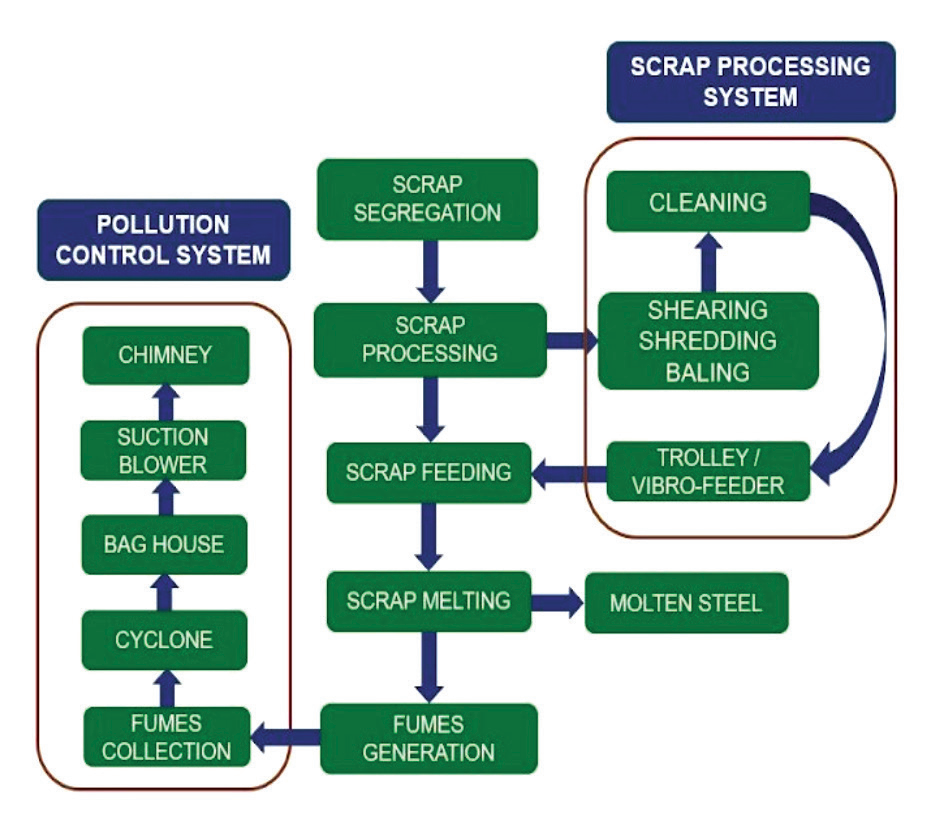

Main Process – Scrap + Induction Furnance

End to End Solutions

These factors can be achieved with streamlining the total process to the desired results. To start with, the purchase of the right kind of raw material suitable for the furnace and the end product need to be identified.

SMS using Scrap as the main raw material face a major challenge as the scrap is never consistent and it is impossible to define parameters for processing it. The complete process from scrap purchase to melting need to be aligned to the desired results.

Dev Energy has developed expertise to provide innovative turnkey solution for efficient scrap segregation, processing and feeding in the furnace. This feeding system also has to be integrated with the pollution or Flue control system generated during melting.

Power is the major cost in making steel. Dev Energy has been actively working on reduction of power with its dynamics and interrelation to scrap processing. The scrap shape, density and size are the variables that determine the time required for melting. The input scrap that is improper results in longer time for melting and higher power consumption.

Offerings

The solution is to process the scrap in the proper parameters using machinery matching the type of scrap.

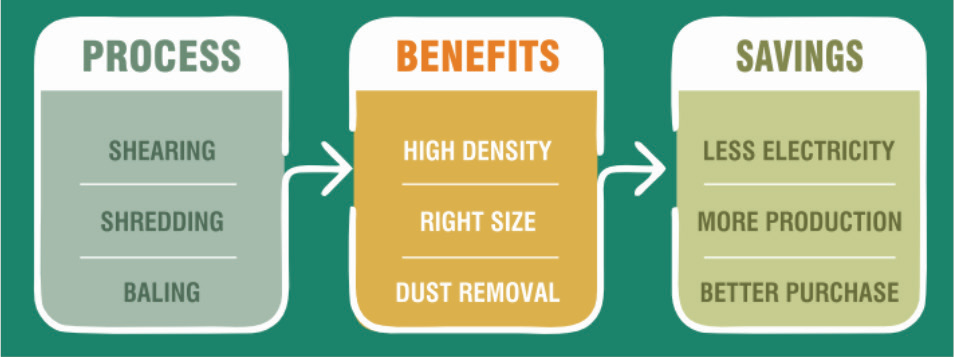

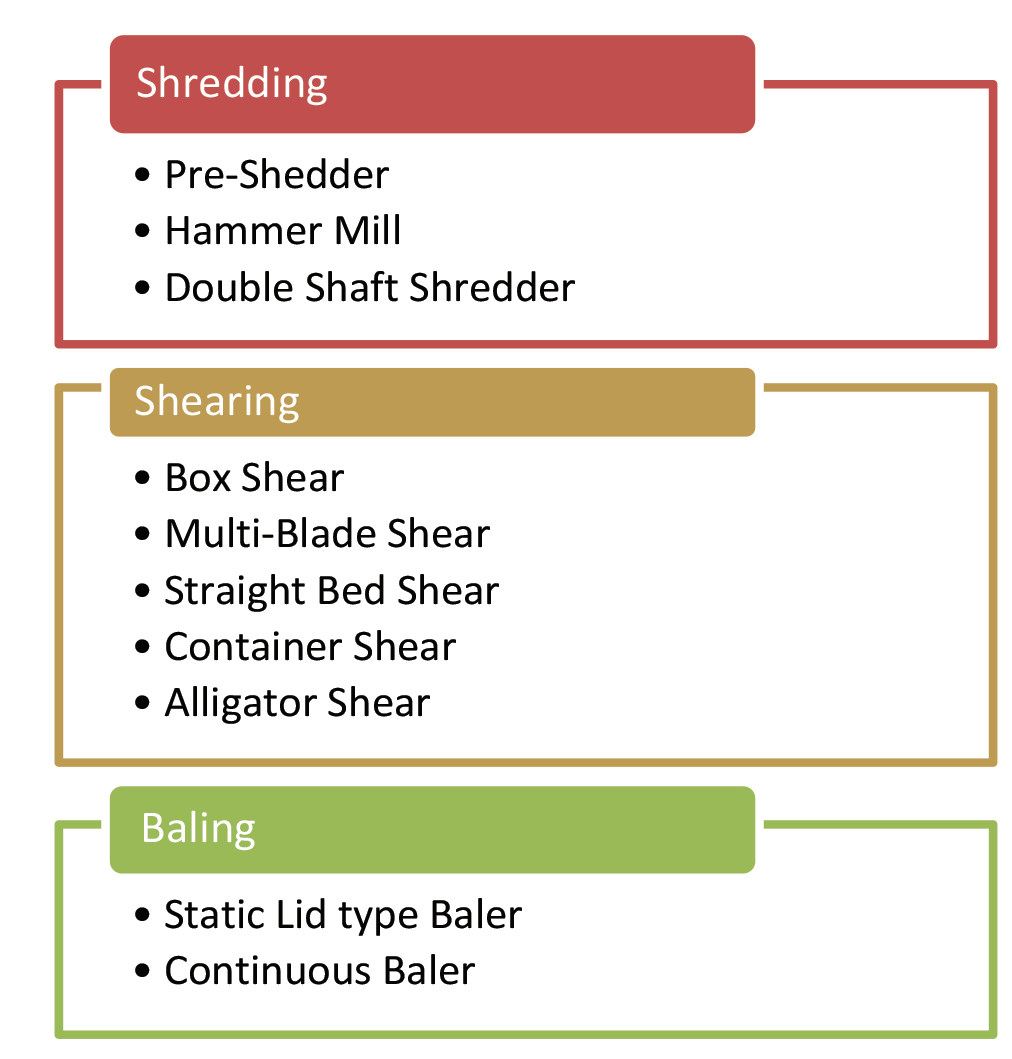

The scrap can be processed using three broad methods namely Shearing, Baling and Shredding. The process identification depends on the type of Raw Steel Scrap, its density, its size, its cleanliness level, the size of the furnace, power density of the furnace etc. There are various types and size of machines available to process scrap from 01 to 100 t/hr.

These scrap processing machines must accompany with matching scrap unloading and segregation system. Once the scrap is processed the system design should be able to feed the same to the furnace. Dev Energy provides the complete range of turnkey solutions for unloading and segregation, processing scrap and the material handling systems for feeding scrap.

The perfect implementation results in reducing the power consumption up to 8% and heat time up to 10% resulting in net cost saving of 10%.

Processed Scrap Targets

Final Density > 1000 Kg / m3,
Size < 600 mm,
Dust ~ Negligible

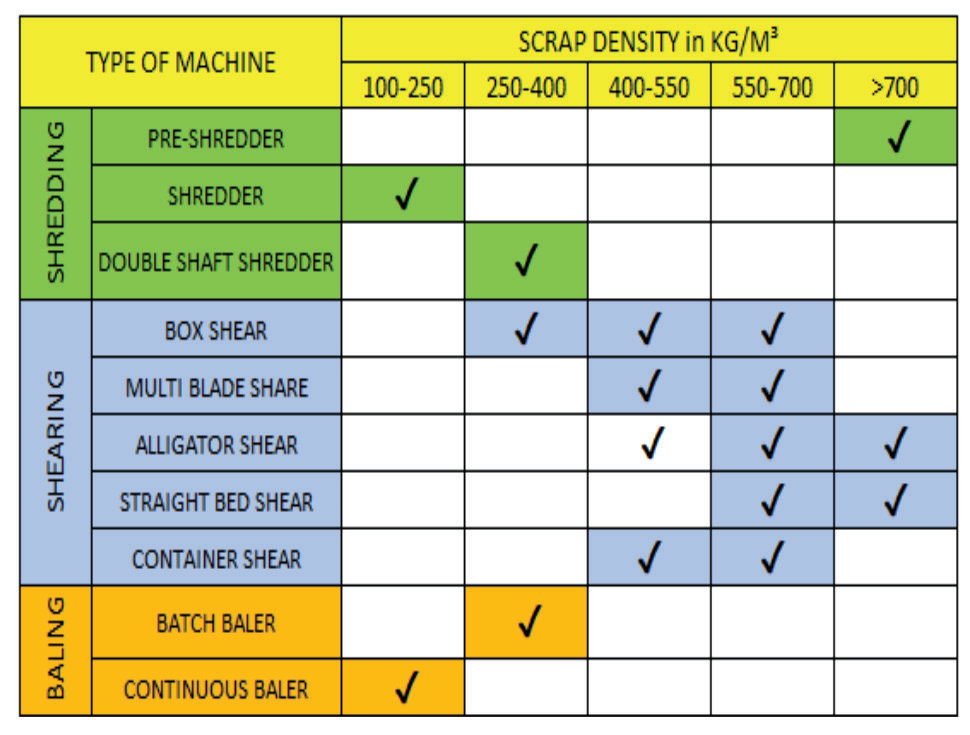

Machine Selection

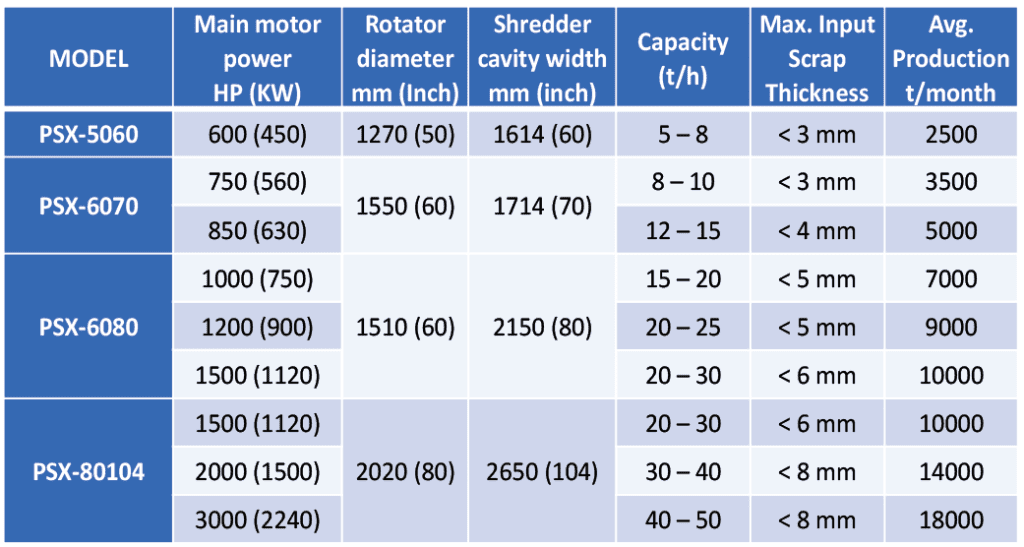

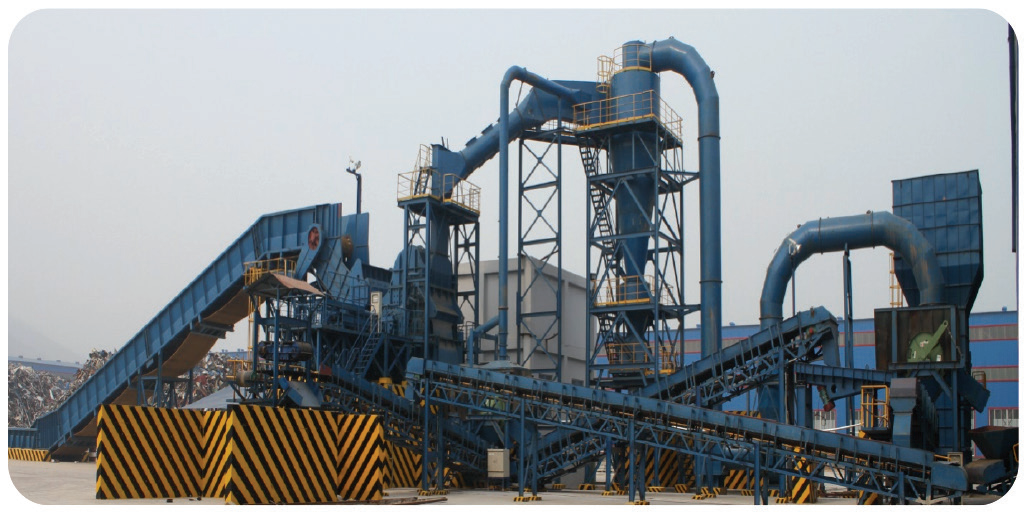

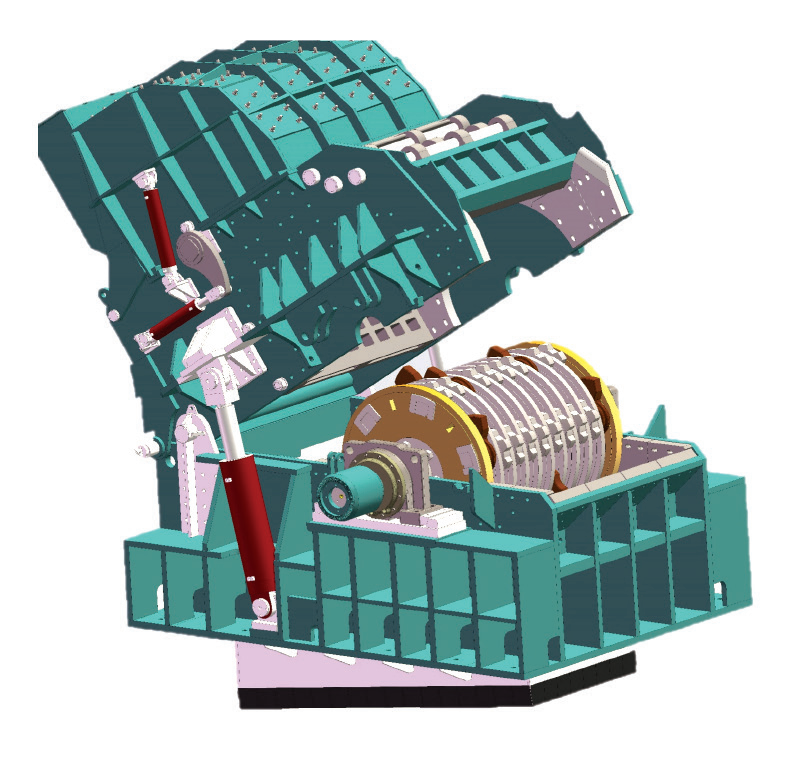

Shredder

Output density to 2 ton/m², ≥ 99% metal recovery in process, Non-Ferrous segregation, Bag House De-Dusting system, Z Box Air-cleaning system.

Lowest operation cost ~ INR 650 / t

Flexible Soution Offering

Sound Proof Enclosure, 2nd Magnetic Separator, Blue Smoke Inhibitors, Video monitoring system, Man Shorting conveyor.

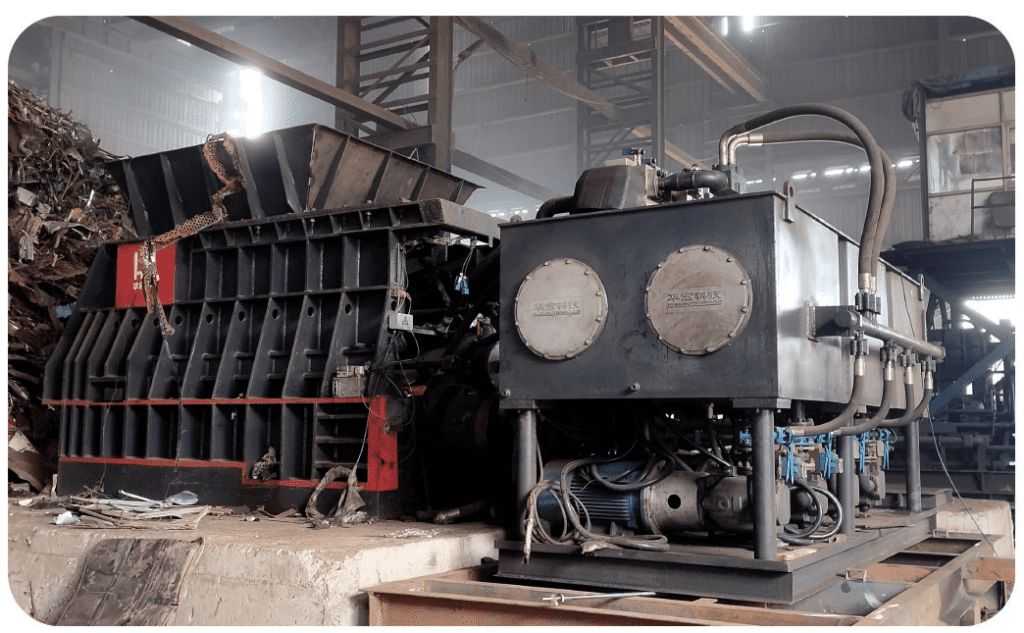

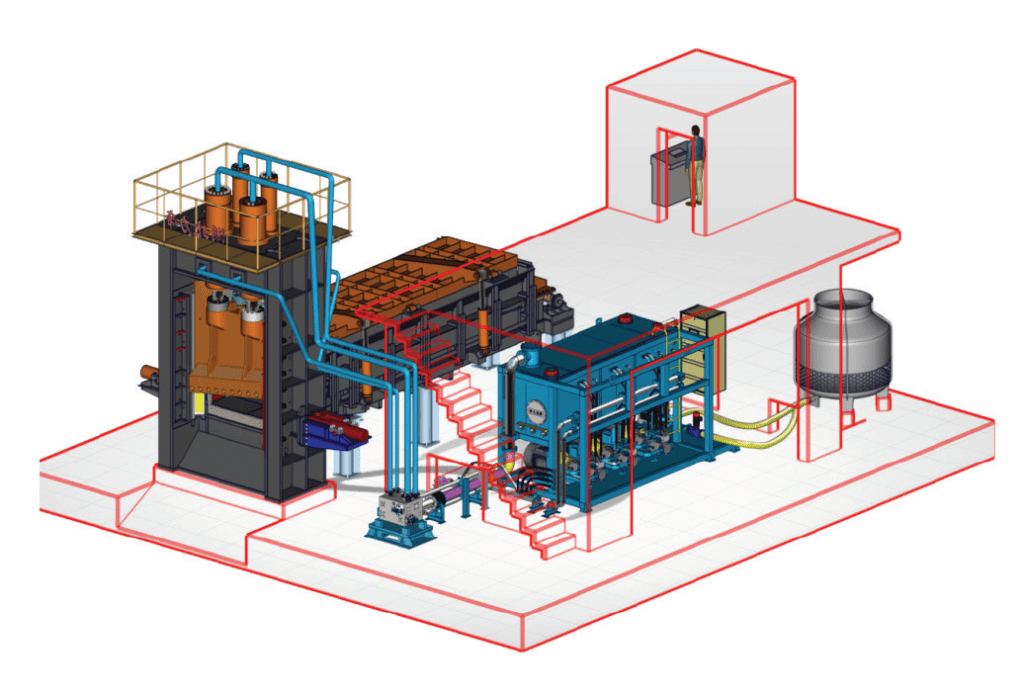

Box Shear

Ideal for all variety of Scraps, Three sides of compression, Additional side press & clamping, Output Scrap Density ~ 1000 Kg/m³

Operational Expenses ~ INR 250 / t

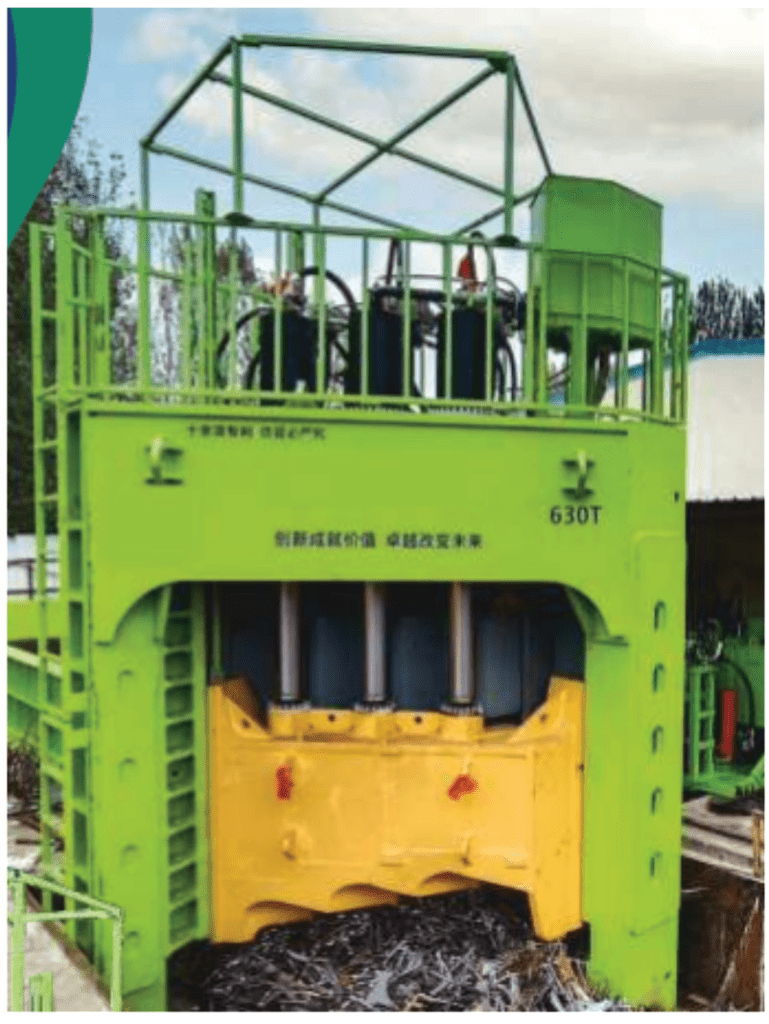

Multi-Blade Shear

LID compression and top clamp compression, Size of shearing < 500 x 500 mm (5 Pieces), Output scrap density ~1000 kg/m³, Ideal for medium & heavy scrap

Low operation cost ~INR 90 / t

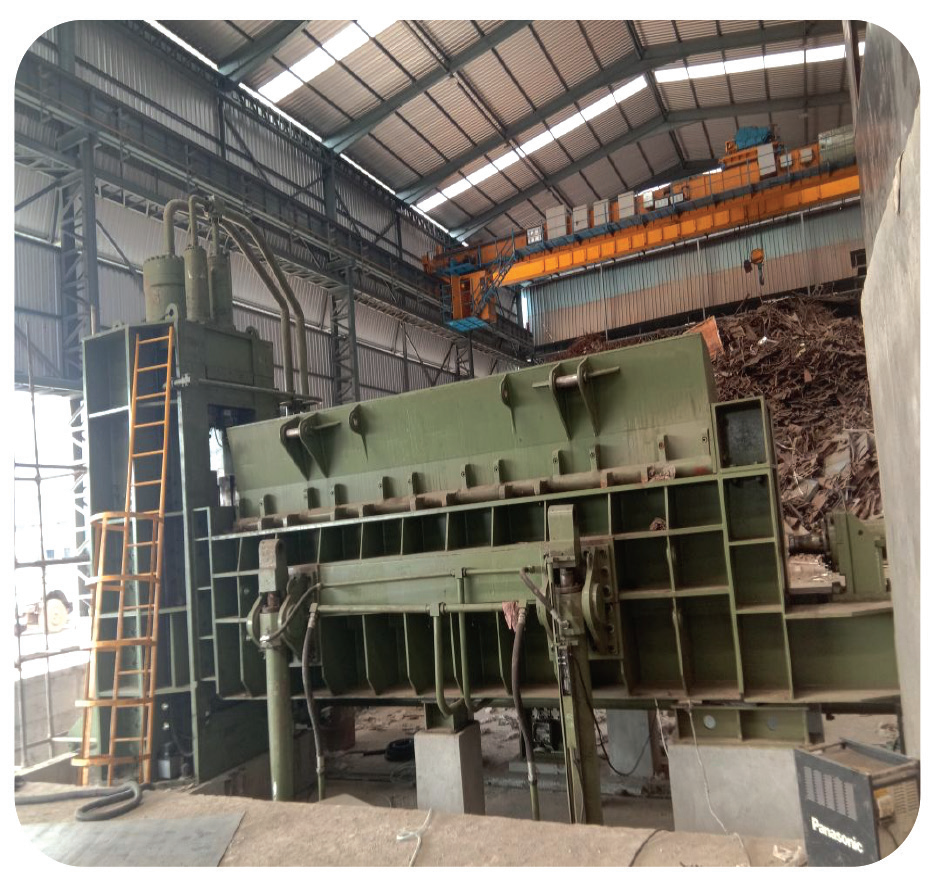

Straight Bed Shear

Output Scrap Density ~ 900 Kg/m³, Automatic Blade Tightening, Side Compression & top clamp compression, Option of Lid cover / Feeding bucket

Low operational cost ~ INR 100 / t

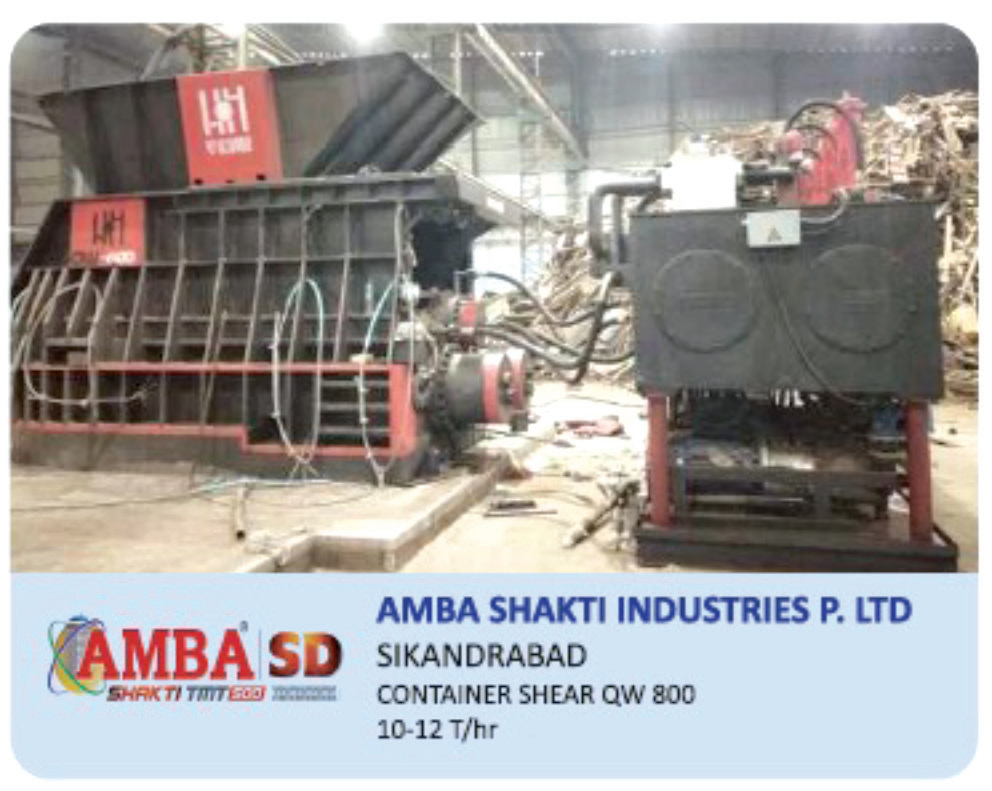

Container Shear

Ideal for Medium & light Scrap, Simple operation of horizontal shearing, Output Scrap Density ~ 700 Kg/m³

Low operational cost ~ INR 100 / t

Alligator Shear

Ideal for Long and Heavy Scrap, Manual Operation

Low operation expense ~ INR 50 / t

Continuous Baler

Continuous operation, Three sides compression, Bales density up to 3 ton / m³, Output Speed ~ 100 bales / hr

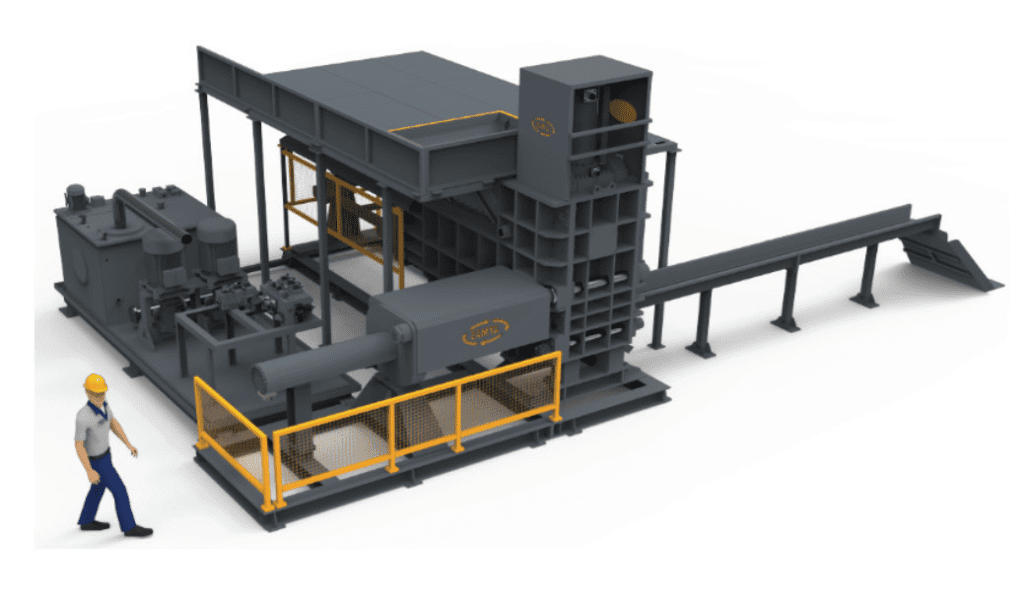

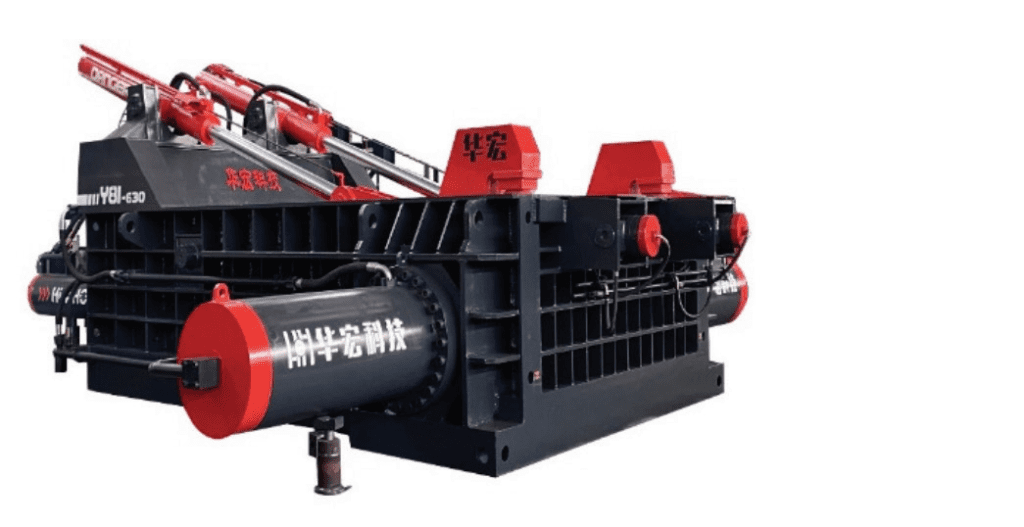

Large Baler

Three sides compression baler, Automatic PLC Driven Operation, Cycle time ~ 120 sec, Fully hydraulic driven operation, Option for Centre / Side FLIP out

Low operation expanses ≤ INR 75 / t

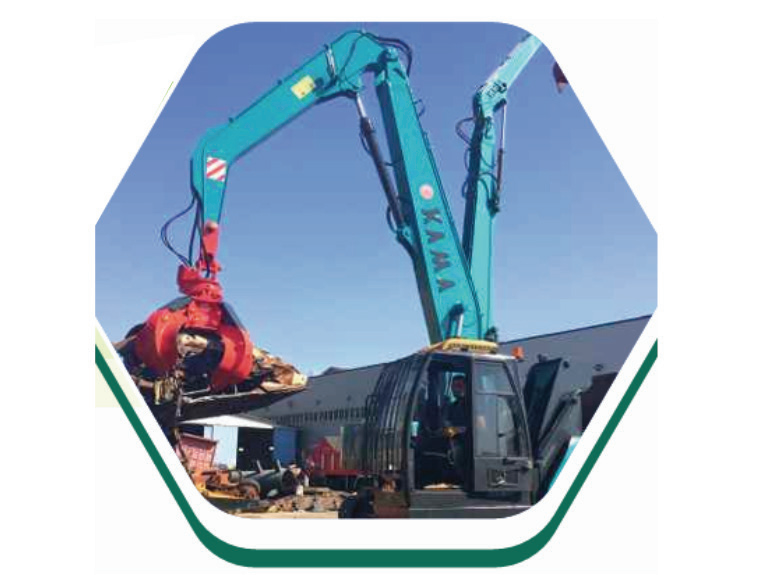

Crane

360 Rotation arm, 30 sec cycle time, grad capacity ~ 0.9 m3, stationary and mobile machine with Diesel or electric option.

Dev Energy provides all these combined solutions which delivers value for money to end user in one package.

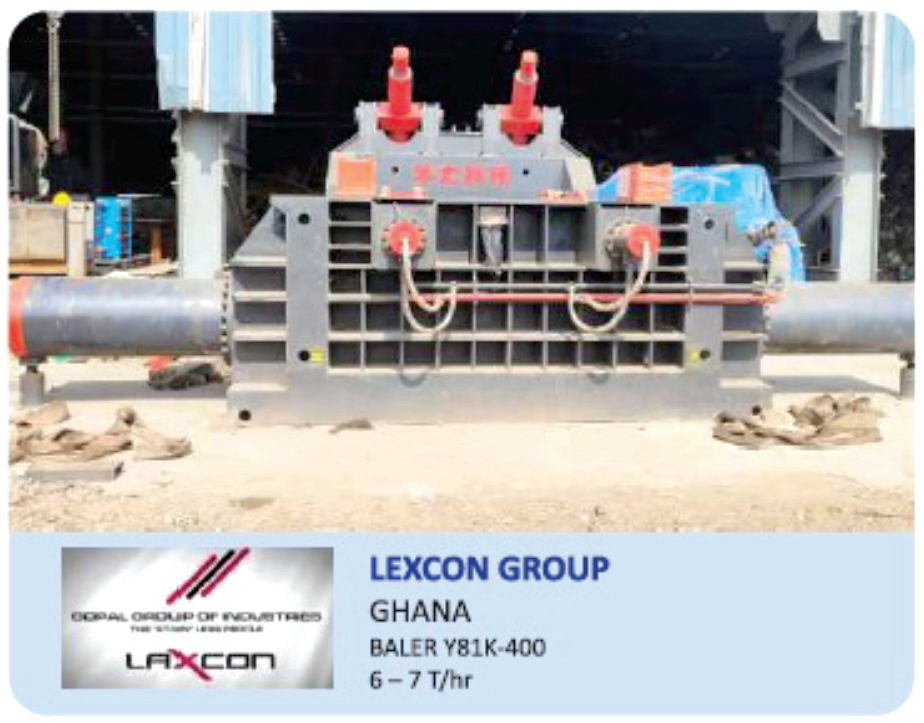

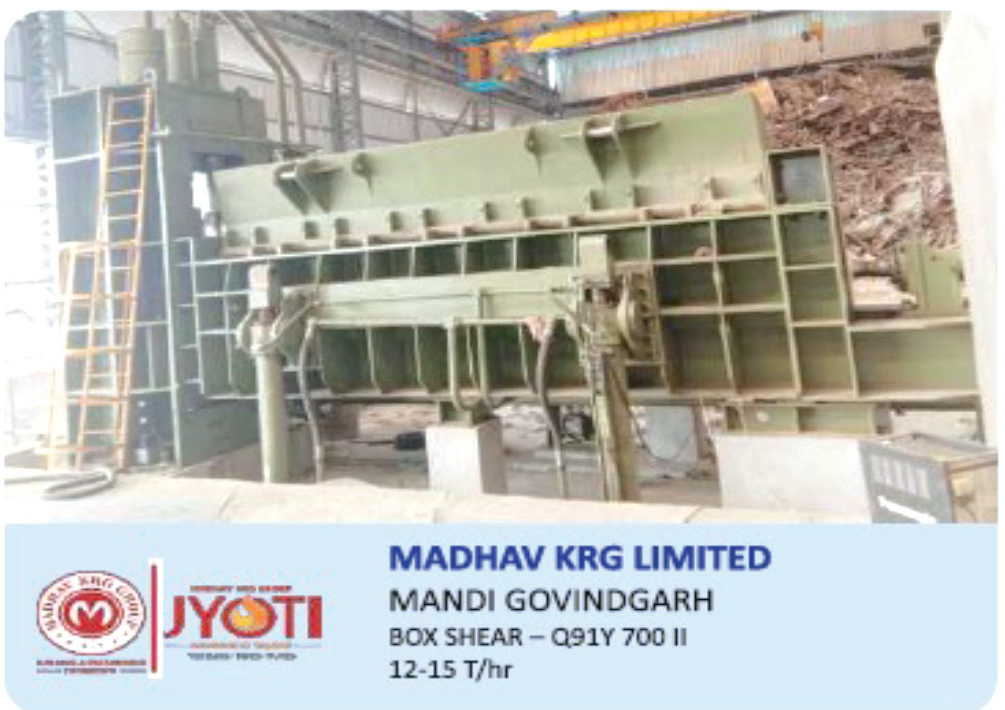

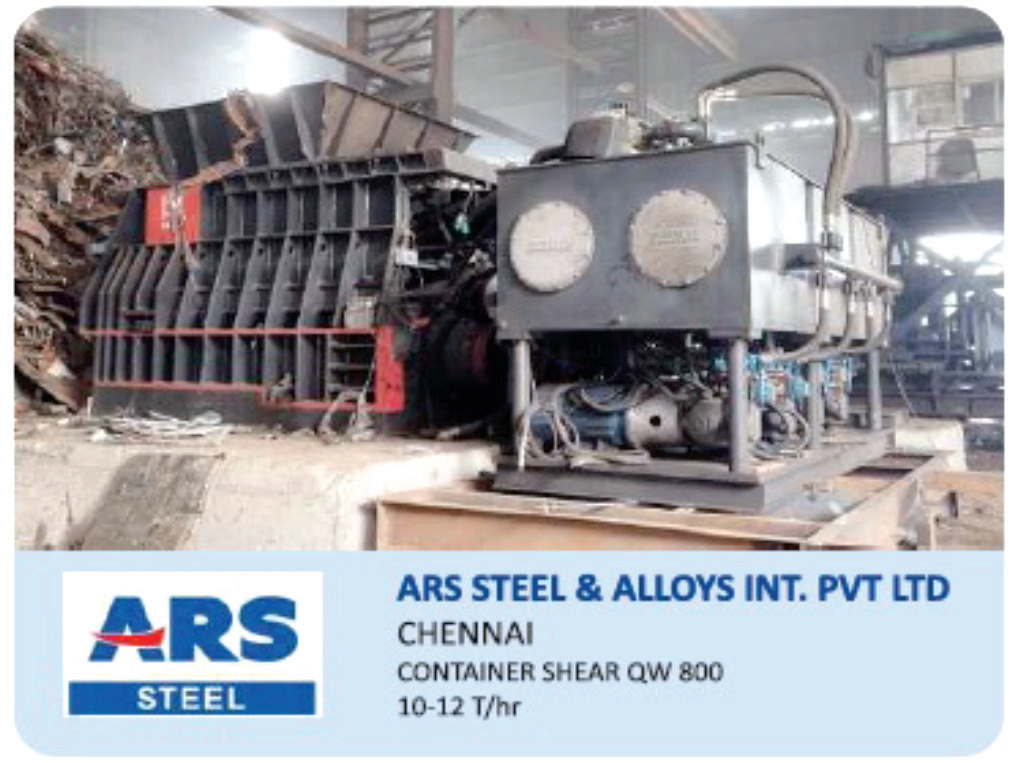

Dev Energy – Projects

Three sides compression baler, Automatic PLC Driven Operation, Cycle time ~ 120 sec, Fully hydraulic driven operation, Option for Centre / Side FLIP out

Scrap Procssing Unit – Green Steel

Based on bench marks of various primary and secondary steel making process with optimized solution using effective scrap processing as mentioned here not only delivers techno- commercially effective solution but also makes move towards Green Steel lower emissions in rage of 0.6 to 0.8 CO2 t / t of Liq. Steel.

As closer to targeted by global standard for Green Steel definition value of 0.4 CO t / t of Liq. Steel.

Conclusion

Dev Energy with its successful EPC/Turnkey project design and implementation is a proven solution provider. Dev Energy has delivered successful projects for > 23 years and is committed to Sustainable Scrap Processing Solutions. With exclusive global partnerships already in place, DEV ENERGY can deliver 3R’s REDUCE, REUSE and RECYCLE.

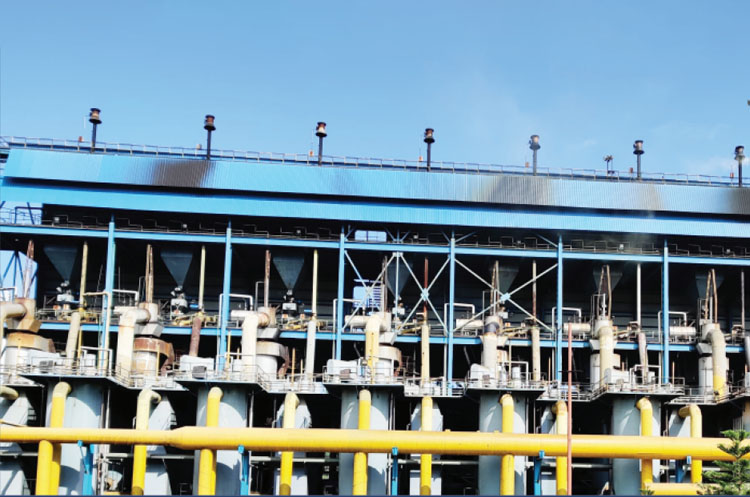

Coal Gasification- A Sustainable & Innovative Heating Solution

By UncategorizedNo Comments

A Sustainable & Innovative Heating Solution

Coal gasification is a process captures thermal & chemical energy of coal into gaseous components methane (CH4), Hydrogen (H2) and Carbon monoxide (CO) which can be used for Industrial heating applications. This process offers several advantages over traditional coal combustion which involve handling of solid coal, residual ash and unburnt carbon. The direct exposure to the coal is not possible in many production processes.

The Coal Gas produced from air-fed gasifiers delivers clean gaseous fuel with the ash of coal, tar and unburnt carbon remaining in the gasifier as residue.

The cost of fuel per unit of energy varies from coal being cheapest then moving higher to furnace oil, High speed diesel, Natural Gas, Propane & LPG. In the last 25 years, the average cost of energy from coal has been 50 – 70% lower than these fuels.

Coal Gasification therefore offers Indian Coal as a suitable replacement for all industrial heating applications like steel, ceramics, glass etc. as an alternate technically feasible, proven technology and cheaper solution than traditionally expensive fuels like furnace oil, natural gas and Propane.

In the Steel Industry all heating applications like Reheating furnace, Annealing furnaces, Iron ore dryers and pelletisation require large amount of heat which can be sourced from Coal Gasification at almost half lower cost of fuel for economic and competitive solution of steel making.

Why coal Gasification For Pellet Plants ?

Pelletisation need a large amount of heat energy for drying of the wet Iron ore pellets. Since, in India most of these pellet plants are designed on expensive fuels like furnace oil or natural gas the cost of manufacturing Iron ore pellets becomes very high which makes Indian pellets less competitive in the global market.

Global Pelletization Fuel Usage Treands:

In China, Iron ore palletisation plants are designed with coal gas or mixed gas as fuel which results in their cost of manufacturing being very low. Similarly, Brazil based Iron ore pelletisation plants are designed for natural gas as Brazil has large natural gas reserves making the cost very low. But, in India pellet plants are designed for furnace oil or Pulverised coal injection. Both these fuels are import based and expensive which makes Indian Pellets manufacturing process systematically expensive and less competitive in the global market.

The coal is available in India in abundance and at a cheaper cost the alternative fuels. Therefore, in order to use the domestic coal for efficiently producing Iron ore pellets, Coal gasification is the most suitable method.

From over twenty-three years Dev Energy has worked in arena of Coal Gasification and now there are many pellet plants are operational with Coal Gasification. Some of these are 2 MTPA Pellet Plant near Raipur, 0.4 MTPA pellet plant near Bilaspur, 0.6 MTPA plant in Orrisa, 0.6 MTPA plant near Durgapur and 0.6 MTPA pellet plant near Hospet in Karnataka.

Key Feature Of Dev Energy Solution:

Pelletisation - Successfull Case study:

MTPA STRAIGHT GRATE PELLET

Design Gas output: 17000 Nm³/ hr
System Configuration: 2 x 4.0 DSCG
Furnace oil replaced: 54 KL / day

Dev Energy provided a Turnkey solution to Minera Steel and Power, Bellary where furnace oil was used as a fuel in their pellet plant. Dev Energy took the challenge and replaced 100% of Furnace Oil with Coal Gas. This resulted in the “World’s First Straight Grate Pellet Plant on 100% Coal Gas”.

Technology Advantages:

The technology uses seven stages of cleaning and cooling of gas with three stages of closed cycle indirect cooling including air cooler and indirect water cooler are used to cool the gas. The two stages of electrostatics precipitation are used to clean the gas of tar. Dust is removed by cyclone. The seventh stage of sulphur removal is done using desulphurisation tower.

The need for water scrubbing is eliminated and all cooling is done without direct contact with water. This eliminates generation fresh water in to phenolic water. A specially designed heat exchanger is used to vaporise the condensate moisture and phenols which are injected back to the gasifier. This technology of reusing the phenolic water helps save energy and uses the phenolic water back in to the system.

The tar produced by the process of dry electrostatic precipitation is at low temperature and free of moisture. This tar is a high-quality tar with CV > 8500 Kcal / Kg.

The technology complies with the norms of pollution control board. The process uses indirect cooling and cleaning which results in no fresh phenolic water generation. The condensate phenolic water is reused in the gasification system. The system is designed for 100% water and steam reuse and no water of any type is discharged outside the system limit making it a zero-discharge system. The system is designed to capture the harmful fumes generated during process.

Process Flow Diagram

The technology has positive impact on health and safety of the operating team because of its non-contact nature making it much safer to operate. It is also very user friendly for and provides consistent performance.

The automation helps to continuously monitor the quality and quantity of gas which feed the Algorithmic based programming to increases the overall efficiency of the system. The clean gas improves the life of the furnaces and the burning systems.

The safety of the system is ensured with a combination of fast cut off valves with high speed vents for gas release and a highly responsive signal interlocking system programmed into the PLC system.

Dev Energy provided a Turnkey solution to Minera Steel and Power, Bellary where furnace oil was used as a fuel in their pellet plant. Dev Energy took the challenge and replaced 100% of Furnace Oil with Coal Gas. This resulted in the “World’s First Straight Grate Pellet Plant on 100% Coal Gas”.

STEEL REHEATING FURNACE, JSPL
Design Gas output: 80000 Nm³/ hr
System Configuration: 10 x 3.6 DSCG
Furnace oil replaced: 250 KL / day

AGI GLASSPAC is a project where innovative solution for regenerative furnaces was implemented. Here the gas is used alternatively in two different chambers and thus in this furnace the gas is required to switch alternatively in the chambers without stopping the flow.  Dev Energy designed a proprietary automatic switch valve to overcome this challange. The valve was integrated with the furnace and gasifier automation system. This system was installed near Hyderabad.

Conclusion

Dev Energy with coal gasification as sustainable solution not only gives efficient and economical heating applications in various stages of steel making but also delivers decarbonisation by replacing the highly polluting GHGs generated from conventional e.g. furnace oil especially reducing carbon di-oxide (CO2).

The system, processes and the equipment are designed and engineered by experienced and professional engineer from India and China. All the manufacturing of equipment is in house in the modern production facilities. This ensures that the demanding quality standards are maintained without any compromise

Dev Energy believes that the success of coal gasification project lies not only in supply of the right technology and equipment, but also in providing right operational training to the team. In order to ensure the system is operated by trained people. Dev Energy provides onsite training to the operational and maintenance teams and if required also take up contracts for operating the system to ensure project’s success. The team of project managers, engineers, trained operators and specialised contractors to provide end to end turnkey solution to the industry.

Present geopolitical environment is pointing in the direction that India needs to use internal resources and reduce dependence on imports. For India, with its huge coal reserves, Coal gasification is a best alternative to reduce country’s dependency on imported fossil fuels.

Today, with many of the India’s and the World’s first innovations in the field of Coal Gasification Dev Energy is in a position to take up any challenge to convert conventional fossil fuels to coal gas for the iron and steel industry.

Circulating Fluidised Bed Coal Gasification Technology for High Ash Indian Coal – Fuel & Dri Syn Gas

By UncategorizedNo Comments

National Coal Gasification Mission

“We have set a target to gasify around 100 million ton of domestic coal by the year 2030. Coal Gas will be used in transport & cooking while urea and steel from gasification will promote manufacturing. Latest technology can be introduced to make gas from coal and environment will be protected with coal gasification” – SHRI NARENDRA MODIHon. Prime Minister of India.

What is Gasification?

Gasification is a robust, proven, and versatile technology that produces syn gas (carbon monoxide (CO) + Hydrogen (H2)) from reaction between carbon, oxygen and steam air at low to high pressure (atmospheric to 30 bar g) and temperature ranging from 1000oC to 1600oC.

Gasification not only captures heat but also Chemical value of feedstock like Coal.

However, Indian coal has challenges of high ash (>35%) thermal non-coking coal and high moisture (48% – 54%) lignite which calls for need most applicable technology.

Ash is removed by gravity from the gasifier and is discharged into a system for depressurization and disposal. The gasifier maintains a low level of carbon in the bottom ash discharge stream and achieves overall carbon conversions that can exceed 99%. Cold gas efficiencies of over 80% and carbon conversion of up to 99% have been repeatedly demonstrated on a commercial scale in CFB operating plants.

CFB is more fuel-flexible, utilizing low-rank and other high-ash coals, and offers higher efficiency than competing gasification technologies, due to the fluidized bed design and resulting long residence times of the reacting particles.

Fines carried over from the fluidized bed are separated from the syngas prior to heat recovery and syngas cleanup. The product syngas is essentially free of tars and oils due to the temperature and residence time of the gases in the fluidized bed, simplifying downstream heat recovery and gas cleaning operations.

CFB gasification adopts three-stage waste heat recovery process, which can recover the heat of high temperature syngas to produce high temperature and high pressure steam along with air/oxygen preheating resulting in overall high thermal efficiency.

Technology Overview

Our Partners

JINAN HUANGTAI GAS FURANCE CO. LTD.

Normal Pressure – Air Fed – Fuel

  • In Operation Since 2009
  • > 22 Operational plants
  • Higher calorific value fuel : 1250 kcal/Nm3
  • Continuous 21 month gasifier campaign

Ease of Operation & Maintenance

Shanghai Zepu Engineering Technology Co. Ltd.

HIGH PRESSURE – OXYGEN FED – DRI SYN GAS

  • Patented and improvised CFB technology
  • High Pressure – 3 bar to 40 bar
  • Proven commercial scale plants from basic engineering, detailed engineering, and EPC solutions for clean syn gas
  • Customised solution for various end-use applications such as clean DRI Syn Gas, Methanol, DME, Ammonia, Urea and SNG
  • Strong R&D in line to handle low-rank coals of high ash and moisture

Technical & Economic Advantages

Government of India Incentives

CFB is the only proven commercial-scale technology for high ash Indian coal gasification projects to benefit from all Government of India incentive schemes:

  • Viability Gap Funding (₹ 8500 cr)
  • Dedicated Coal linkages assurance
  • Notified Coal Pricing (Lower coal price than auction rates)
  • 50% rebate on captive mine dedicated to surface coal gasification
  • Coal Price GST waive off (~ 400 Rs/ton)

National Steel Mission – Guarantee off-take for steel makers

As India’s major contributing GDP National mission to grow to 300 million ton per annum steel production by 2030 from 127 million ton per annum as of 2024 to support strong infrastructure growth, steel producers will also be served by the proven commercial-scale CFB technology clean DRI syn gas from high ash Indian coal gasification projects. These projects will also be 100% Green Hydrogen compatible for coming decades as against Blast Furnace route which depends on high price of coking coal imports.

CFB Coal Gasification – “IN India FOR India”

Technology Selection – Why CFB?

   Commercial scale three technologies which are Fixed Bed, Entrained Flow and Fluidised Bed technologies below pros and cons:

Based on various interactions organised by the Ministry of Coal for the implementation of the National Coal Gasification mission it is evident that all major technology developers such as Thermax, BHEL and CSIR-CIMFR have chosen CFB starting with pilot scale as the most suitable technology for Indian high ash coal.

CFB Technology – How it Works?

Grinding, sorting, shredding, and/or drying may be required to bring the feedstock up to the gasifier feed system’s standards of <10 mm particulate size.

The prepared feedstock is pneumatically supplied to the CFB gasifier vessel, which is a bubbling in circulating fluidized bed reactor. The feedstock combines with air/oxygen and steam as gasification in the fluidized bed, uniform temperature of 1000 oC is maintained to provide high carbon conversion and non-slagging conditions for the feedstock’s ash. The CFB gasification process is carried out as partial oxidations as gasification of feedstock with agglomeration and separation of ash.

Technology Features & Advantages

Adaptability of CFB Syn Gas

The syngas is subsequently processed for use in a variety of applications, including direct reduced iron (DRI) steel production, methanol, fertilizers like ammonia, Urea, further ammonium nitrate, substitute natural gas (SNG) and di-methyl ether. Pre-combustion carbon capture CFB Gasification in syngas cleaning systems downstream of the gasification process makes it useful for CO2 removal as raw material for downstream products and potential to make it carbon neutral technology solution.

Compatibility with downstream DRI Licensors

   CFB technology has full flexibility of H2/CO ratio, CO2 removal adjustment as required by all global DRI technology providers offering wide adaptability for the complete technical and commercial optimisation for steel makers.

Flexibility of CFB offering

CFB gasification adopts oxygen-enriched gasification, and the N2 content in syngas can be effectively controlled below 5% or lower. CFB gasification pressure is high avoiding any downstream compression requirement, and the CH4 content in the syngas can be up to Controlled ideal for DRI steel-making feedstock.

Compatibility with downstream DRI Licensors

CFB technology has fully aligned requirement of H2/CO ratio, and CO2 removal adjustment as required by all global DRI technology providers offering wide adaptability for the complete technical and commercial optimisation for steel makers.

Optimized process configuration

Commercial DRI Plant – Ready for offering

0.5 MTPA DRI – Vertical Shaft Kiln

Clean DRI Syn Gas Process

CFB offers the flexibility of a partial water shift gas process unit for the downstream vertical shaft kiln. Also, this technology is capable for using wide range of O2 purity from Air Separation unit and CO2 removal unit required levels.

Conclusion

    DEV ENERGY with its successful Turnkey project design and implementation proven solution provider has delivered > 23 years and is committed to taking National Gasification mission on a fast implementation model with low capital cost using a Circulating Fluidised Bed Technology with commercial scale projects. We are also well aligned with the “Make in India” model even with China Partners as maximizing local manufacturing and minimum proprietary scope (<5%) with no technology transfer fee requirement due to Dev Energy exclusive partnerships already in place. With experienced & qualified EPC solution provider not only can coal gasification projects on fast track but also provide after sales service and operational success for sustainability of high ash Indian coal gasification with CFB.

References

  1. https://pib.gov.in/PressReleasePage.aspx?PRID=1999220
  2. https://coal.gov.in/sites/default/files/ncgm/ncgm21-09-21.pdf
  3. https://www.netl.doe.gov/carbon-management/gasification#:~:text=Gasification%20enables%20remediation%20of%20wastes,net%2Dzero%20energy%20system%20basis.
  4. https://pib.gov.in/PressReleasePage.aspx?PRID=1944388

Achieving Cost Reduction through Enhanced Efficiency in Scrap-based Steel Melting Shop

By UncategorizedNo Comments

Importance Of Secondary Steel Sector

Secondary steel provides a convincing answer for sustainable practices. Recycling and rerolling methods not only reduce environmental impact they also ensures high-quality goods that fulfil industrial requirements. As the construction industry prioritizes sustainability, using secondary steel is critical for a greener future. That is where secondary Steel Melting Shop (SMS) becomes critical to achieve this.

Steel is one of the most competitive sectors. The makers must be efficient and cost-competitive with main producers that create steel from iron ore. To manufacture molten steel, the secondary steelmaking process must employ electric arc or induction furnaces. In India, approximately 45% of steel is manufactured utilising induction furnaces with two major raw materials – Sponge iron and Scrap steel. The primary expense of producing steel is melting, hence the cost efficiency of the SMS becomes critical.

Heart Of An Efficient Sms Process

  • High Power Density
  • High Melt Rate
  • High Yield l Low Heat time
  • Low Power Consumption Per Ton
  • Less Pollution
  • Longer Life of Equipmen

SMS that uses scrap as their primary raw material face significant challenges since scrap is never constant and processing.

Steel Technology

Scrap can be treated using three basic methods: shearing, baling, and shredding. The process identification is determined by the kind of raw steel scrap, its density, size, cleanliness level, furnace size, furnace power density, and other factors. There are numerous types and sizes of equipment available to process scrap from 1 to 100 tonnes per hour.

The majority of the cost of producing steel is power. Dev Energy has been actively focusing on power reduction, including its dynamics and its relationship to scrap processing. The time required for melting is determined by the scrap’s form, density, and size. Improper input scrap leads to longer melting times and increased power usage.

The aim is to process the scrap in the right settings with technology that matches the type of scrap.

Shredder- Hammer Mill

The Hammer Mill Shredders have output density of almost 1.4 ton/m3 with metal recovery of up to 98%. The operation cost of ~ INR 700 /t makes it savings super star for steel scrap melters.

Steel Technology

Innovative solutions in fumes extraction system from the house of Dev Energy results in high dust removal efficiency and clean gas dust concentration is achieved with minimum work zone emissions.

DEV ENERGY developed and deployed a Dog House based fumes extraction system for induction furnaces, collecting more than 95% of the fumes and total power usage is ~10kwh/t.

Scrap steel has a large amount of galvanised and painted material that is high in zinc, and the dust recovered typically contains up to ~ 40% of this zinc. This dust can be sold on the market. This converts the DEV ENERGY provided pollution control system into a revenue-generating system rather than an expenditure.

The key performance parameter in compliance of PCB Norms is for the Dog House to suck > 95% fumes and the Bag House f iltration to remove the SPM and exhaust through chimney only under norms.

Scrap Pusher compliments the Dog House system to help SMS furnaces achieve the required melting rate. It has hydraulic operation and rotation on Slew bearing. The telescopic boom on hydraulic motor makes it first choice for users.

parameters cannot be defined, therefore the technologies need to adapt to this variable environment.

The entire process, from scrap purchasing to melting, must be linked with the desired outcome.

 Dev Energy has acquired competence in providing unique turnkey solutions for effective scrap separation, processing, and feeding into the furnace. This feeding system must also be connected with the pollution or flue control system used during the melting process.

Scrap Processing

 The scrap processing machines must be selected with reference to the type of scrap that the SMS can source. The machines must be complemented by appropriate scrap unloading and segregation systems. After the scrap is treated, the melt shop design and equipment should be able to feed it into the furnace. Dev Energy offers a full variety of turnkey solutions for scrap unloading, segregation, scrap processing and scrap handling and feeding.

 Box Shear

Box shears are ideal for processing a huge variety of scraps. The machine can take all the input scrap and convert it into output of density ~ 1 ton/m3.

The operational cost of ~ INR 250/t makes it the wisest choices for users.

 The perfect implementation of superior shredders and shears reduces the power consumption by up to ~ 8% and heat time by up to ~ 10% resulting in overall ~ 10% net cost savings.

 Fumes Extraction System (FES)

 The National Green Tribunal (NGT) rules and the more stringent Pollution Control Boards (PCBs) have compelled SMS retailers to investigate and reassess flue control system technology. The present devices can only absorb up to ~ 60% of emissions and cannot fulfil government standards. Because they are intended for exceptionally high working pressure, their operating costs are quite expensive.

 Scrap Charging Trolley which is remote controlled and runs at speed of ~ 30 MPM with VFD DRIVE helps feed the scrap to furnaces without the need for Dog House to be moved. Both back-front and side-travel option are available for versatile layout design.

 By achieving desired parameters at the outlet of fumes extraction system the workers can do work more efficiently. Higher Yeilds becomes possible once the above mentioned systems are installed and utilised regularly.

Conclusion

Dev Energy is a prominent and reliable provider of end-to-end operational cost reduction solutions for secondary steel melting plants, including scrap processing, scrap feeding and fume extraction systems. With a proven solution offering spanning more than two decades, we have lowered our clients’ production costs while increasing compliance with PCB standards in tighter emission specification limits. Overall, we are devoted to continuing to increase production efficiency in the secondary steel melting shops business.
